Description:

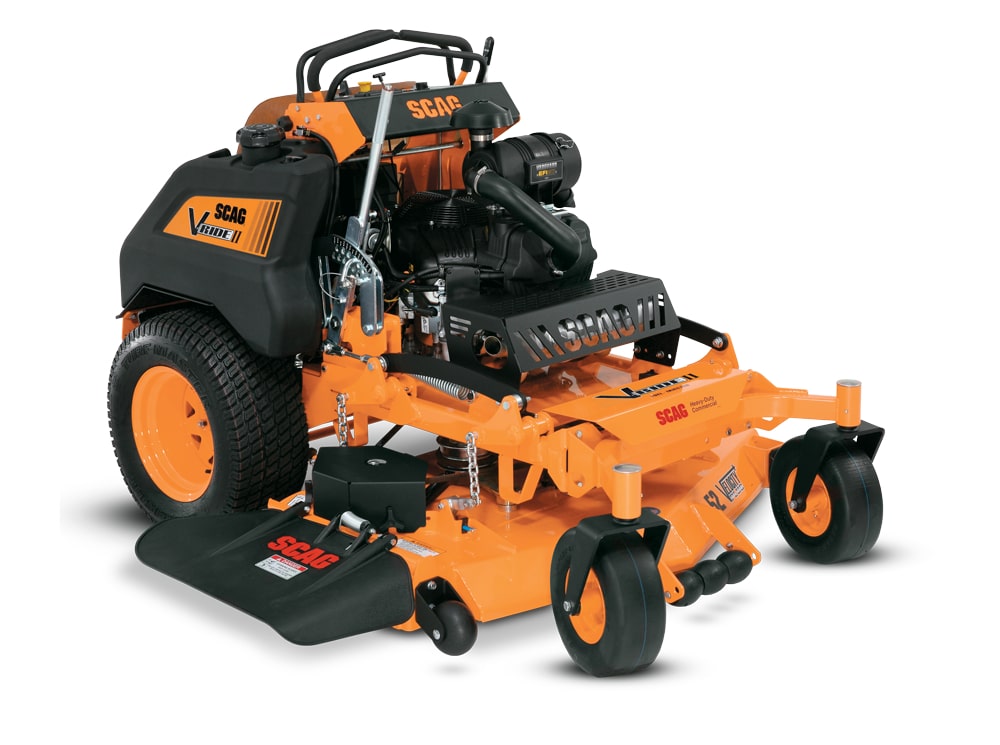

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

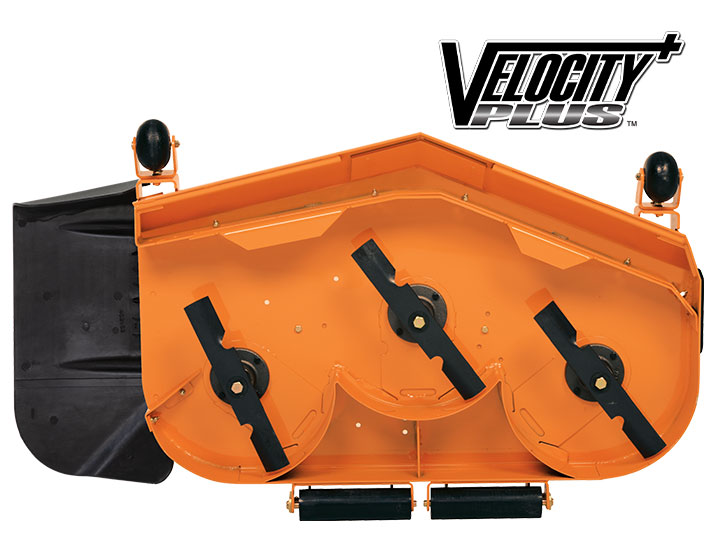

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths.

Engine:

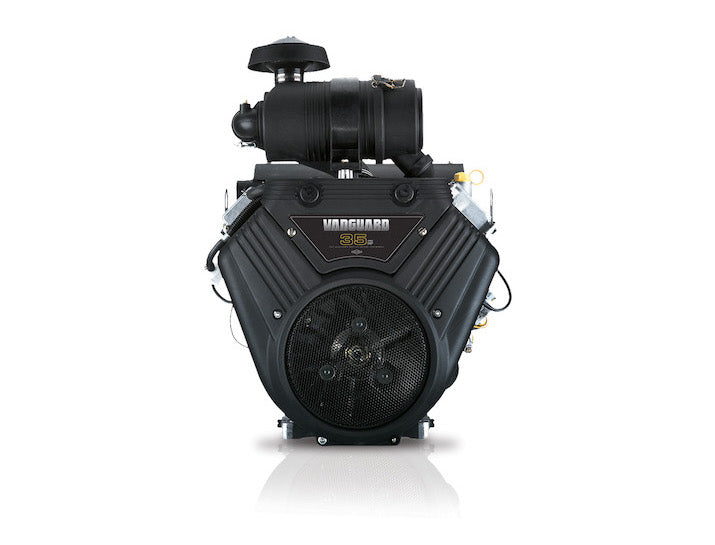

The Briggs & Stratton® Vanguard® BIG BLOCK™ engine found on select Scag® mower models is a proven performer with power and reliability. Features include:

• V-Twin OHV technology.
• Dura-Bore cast-iron cylinder sleeve.
• Full-pressure lubrication with spin-on oil filter.
• Oil cooler.
• Advanced debris management.
• Centrally located oil pump and pickup.
• Heavy-duty cylinder and sump.
• High-efficiency head design.
• Dynamically balanced crankshaft.
• Industrial-grade solenoid shift starter.

Specifications:

Product: 36″ V-Ride II

Dimensions:

• Length: 65.25″
• Tracking Width: 36″
• Width (Chute Down): 47.75″
• Width (Chute in Transport Position): 37.25″
• Height: 47″
• Weight: 832 lb

General:

• Total Fuel Capacity: 6.75 gallons
• Drive Tires: 20″ x 8″-10″
• Caster Tires: 11″ x 4″-5″
• Seat: Extra-large comfort cushion

Drive System:

• Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc
• Motors: Parker 12 ci
• Forward Ground Speed: 8.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck:

• Cutting Width: 36″
• Type: Advantage
• Cutting Height: 1.5″ to 4.5″ in 0.25″ increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck with reinforcement at spindles
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT2.5 (150 ft lb) with adjustable air-gap for extended life

Width	Weight	Height	Length
	832 Pounds		0 Inch
