Description:

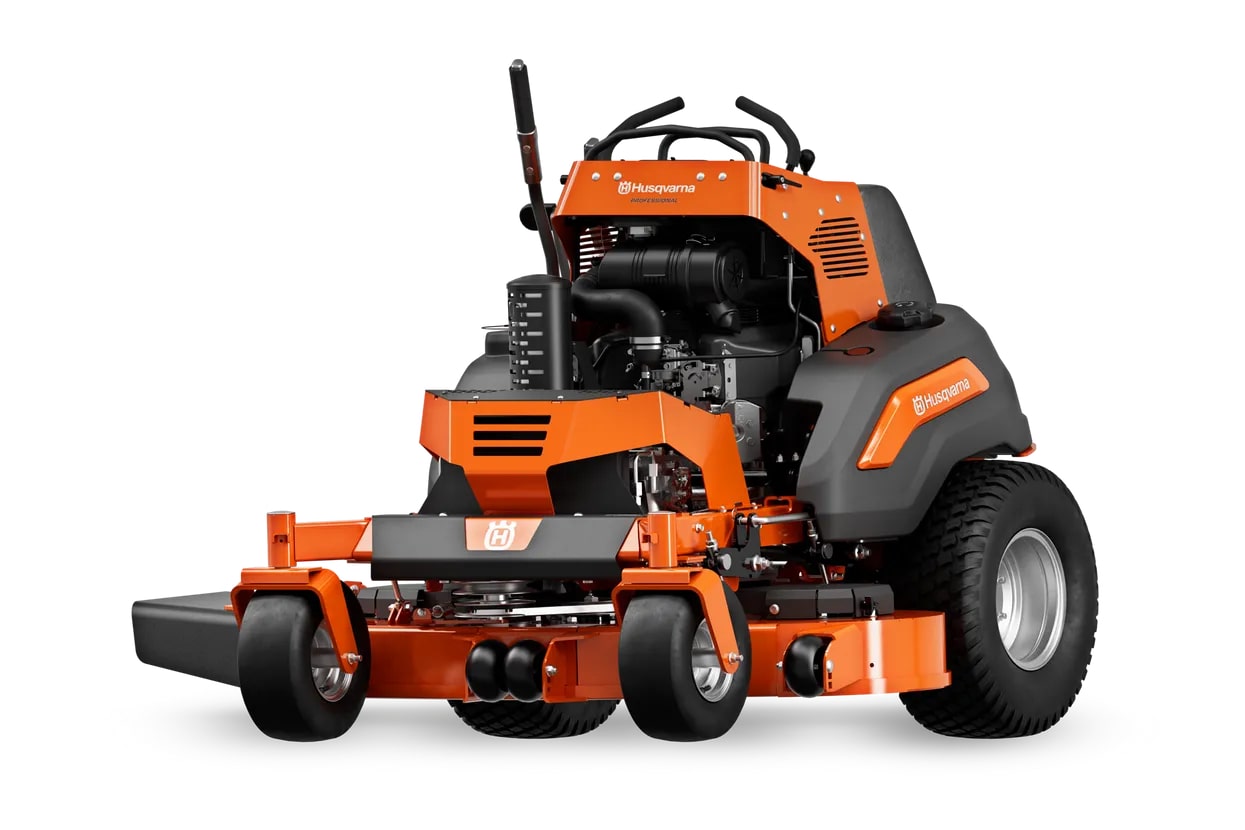

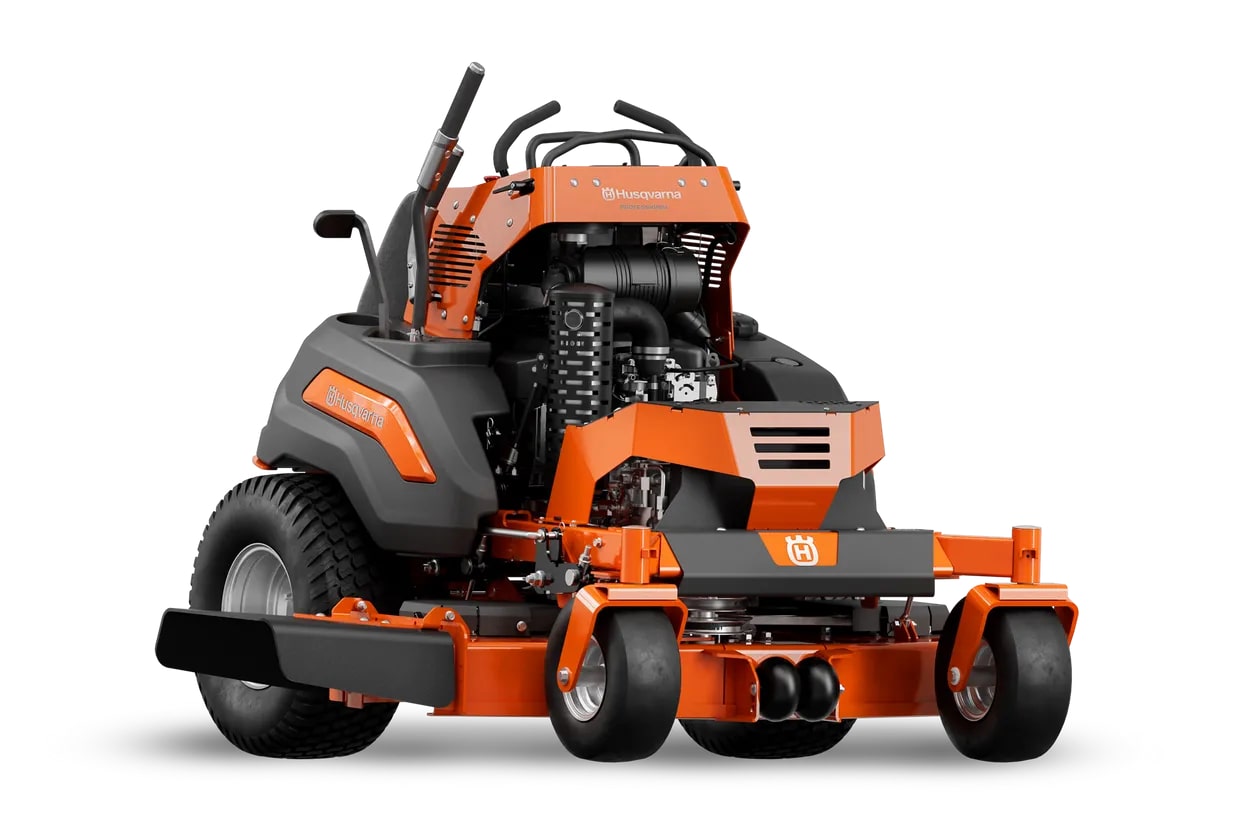

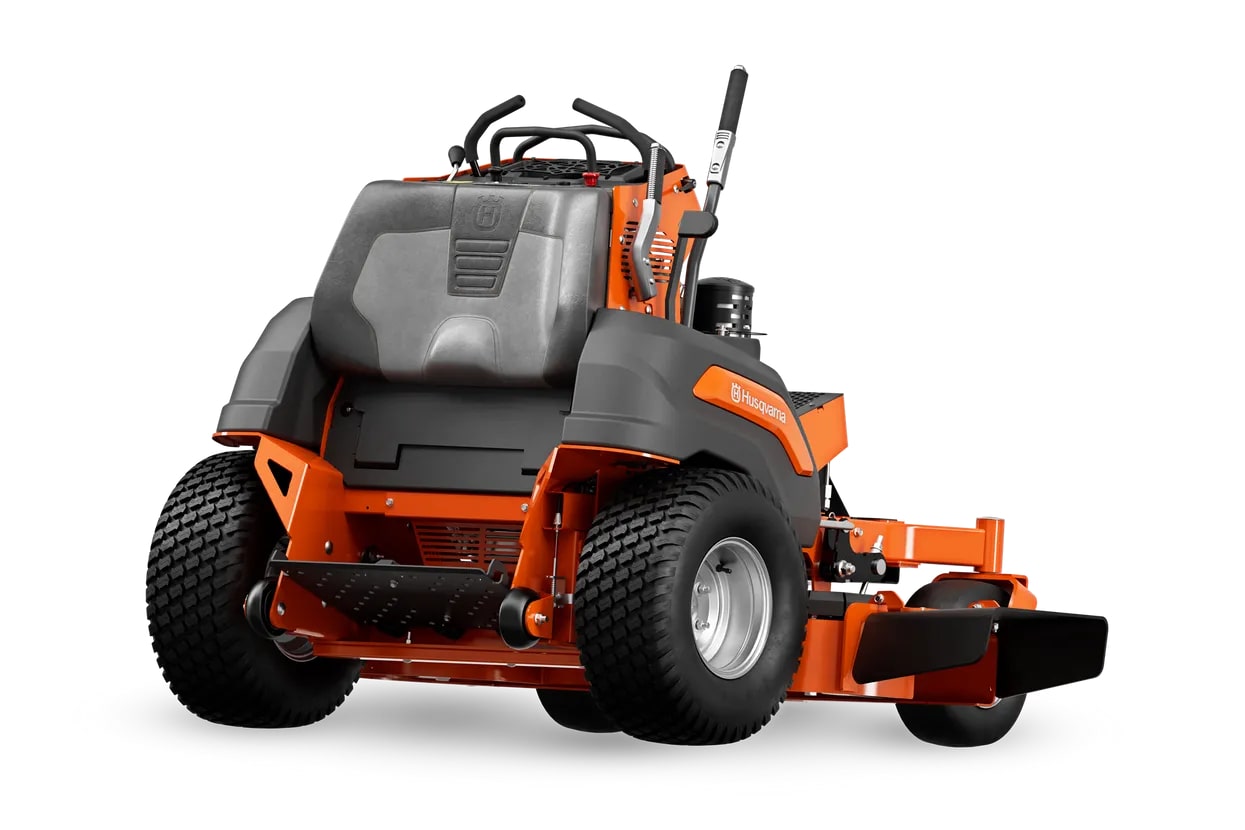

The Husqvarna V500 series stand-on mower represents maximum efficiency in commercial mowing. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver maximum durability in any commercial application.

Features:

• Stand between the axles: Positioning the operator between the wheels instead of behind the wheels places weight in a more appropriate location for enhanced traction. It reduces the operator effort in staying perfectly balanced, especially during zero turn maneuvers.
• Flip-up platform: The flip-up platform allows operator to handle difficult terrain and areas of limited maneuvrability in a fast and efficent manner
• Kawasaki FX series V-twin engine: The powerful FX series Kawasaki engine features a heavy duty air cleaner, steel blower shroud and heavy duty starter assembly for extended life and smooth running performance.
• Cast aluminium spindles: 10" diameter commercial cast aluminium spindles with tapered roller bearings more effectively spread impact loads for extended durability.
• High leverage deck lift: With an extended cast handle and spring assist, the V500 has the most ergonomic deck lift in stand-on mowing. Easy to raise and easy to lower reduces strain throughout the workday.
• Tool-less removal of operators cushion: For minor service and cleaning, the removal of operators cushion is fast and efficient, keeping up-time at a maximum.
• Palm deck release: The deck automatically lowers into position with just a tap of the palm
• Operators console: With all of the controls at the operator's fingertips and well protected by the operator assist bars, ease of use is premium.
• Heavy Duty Cutting Deck: The high performance cutting deck features rugged 7 Gauge steel construction with double supported scalp rollers and steel belt shields

Specifications:

Engine:

• Manufacturer: Kawasaki
• Horse Power: 24.5 HP
• Type: FX Series V-Twin
• Displacement: 52 cu.in (852 cc)

General:

• Transmission: Pump/Wheel motor
• Fuel Capacity: 7 gal (26.5 L)

Deck:

• Discharge Type: Collect / Mulch / Side discharge

Cutting System

• Cutting width: 54 in
• Cutting deck type: Fabricated
• Cutting methods: Collect/Mulch/Side discharge
• Cutting deck material: Steel
• Deck thickness: 7 gauge
• Cutting height steps: 14
• Blade engagement: Electromagnetic clutch
• Blade-tip speed: 18,500 fpm
• Blade-tip speed: 94 m/s
• Blades: 3 pcs
• Anti-scalp wheels: 3
• Nose roller: No
• Deck lifting system: Manual, foot activated
• Powder-coated cutting deck: Yes
• Spindle/mandrel type: Aluminium, commercial
• Greasable mandrels: Yes
• Deck Wash Port: No

Capacity

• Productivity: 4.3 acres/hr
• Speed forward max: 10 mph (16.1 km/h)
• Speed forward min: 0 mph (0 km/h)

Dimensions

• Base machine, height: 48 in (122 cm)
• Base machine, length: 57 in (145 cm)
• Base machine, width (chute down): 68 in (172.7 cm)
• Base machine, width (chute up): 55 in (139.7 cm)
• Weight: 1,176 lb (533.4 kg)

Drive system

• Transmission type: Pump/Wheel motor
• Transmission manufacturer: Hydro-Gear/Parker
• Transmission model: HP1/DL
• Pump displacement: 12 cm³
• Fan-cooled pumps: Yes

Engine

• Motor/engine manufacturer: Kawasaki
• Engine Power (As rated by the engine manufacturer): 24.5 hp
• Engine name: FX Series V-Twin
• Cylinder displacement: 52 cu.in (852 cm³)
• Cylinders: 2
• Engine cooling: Air
• Air filter type: Heavy-Duty Canister Style
• Power/fuel type: Gasoline
• Engine lubrication type: Full pressure with oil filter
• Oil filter: Yes
• Fuel tank volume (with reserve): 7 gal (26.5 L)
• Fuel tank location: Side (Single)

Equipment

• Seat material: Vinyl
• Seat back height: Low
• Hour meter type: Yes
• Cup holder: Yes
• Seat type: Professional
