Description:

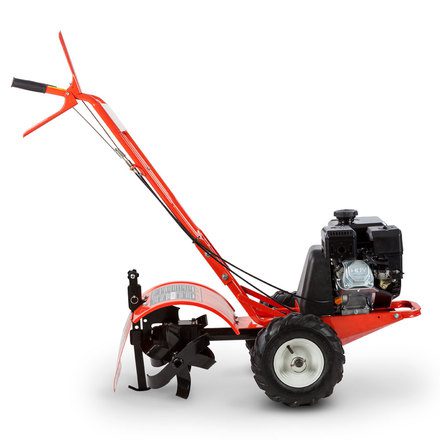

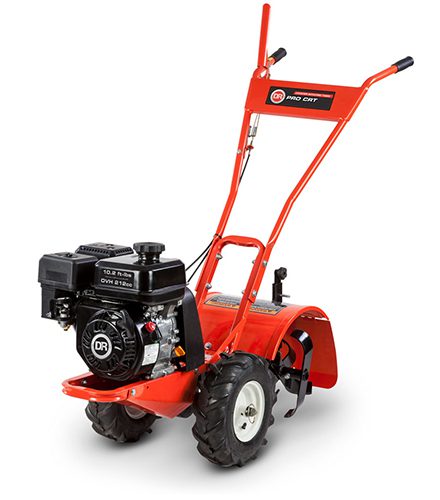

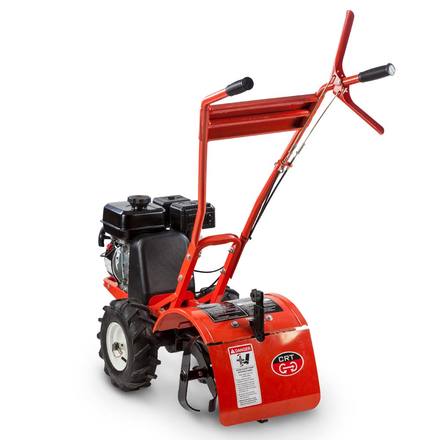

A powerful OHV engine and aggressive counter-rotating tines gives the DR Rear Tine Tiller the extra muscle you need for sod-busting, and makes all types of soil preparation fast and easy. Power driven wheels can be released with a pin for free-wheeling when needed to travel or maneuver the tiller.

Specification:

Dimensions

• Height: 48″
• Length: 56″
• Weight: 145 lbs
• Shipping Weight: 157 lbs
• Shipping Dimensions: 43″ x 20″ x 24″

Engine

• Make: DR
• Type: OHV
• Displacement: 212 cc
• Cooling: Air
• Lubrication: Splash
• Cylinders: 1
• Air Filter: Paper
• Oil Type: 30HD / 10W-30
• Oil Capacity: 18.5 oz
• Oil Filter: Paper
• RPM Speed: 3700
• Starting Type: Recoil

Fuel System

• Fuel Capacity: 3.8 qts

General

• Assembly: Some assembly required
• Transmission: Geared

Wheels & Tires

• Number of Tires: 2
• Tire Size: 13″ x 5″

Warranty

• Engine Warranty: 2 yrs Residential, 90 days Commercial
• Machine Warranty: 2 yrs Residential, 90 days Commercial
